Fabric frame

About Fabric frame

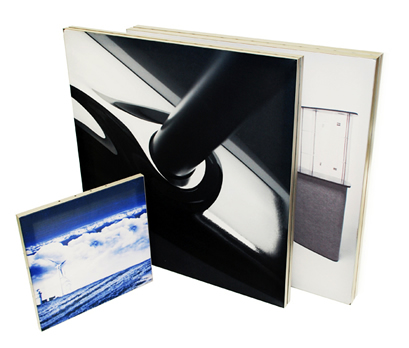

Fabric frame is a collapsible fabric display frame. Neat and vivid high quality fabric display, with slim aluminum edge, give you a perfect image. Easy to change graphic without tools and any training. Three thickness are available: frame 26 is 26 mm thick extrusion, the frame is thin and light weight, best choice for wall mounting; Frame 56 using 55 mm thick extrusion, and usually worked with AMES system for custom stand for exhibition, event, kiosk and so on; Frame 80 is 80 mm thick extrusion, this can be used for light box or big structure.

Available size (LxH): 496 x 496 mm / 992 x 992 mm / 992 x 1488 mm / 992 x 1984 mm
992 x 2418mm
Available thickness: 26 mm / 55 mm / 80 mm
Available color: silver
Material:  pure aluminum , silicon strip
View size (LxH): 490 x 490 mm / 986 x 986 mm / 986 x 1482 mm / 986 x 1978 mm
986 x 2412 mm

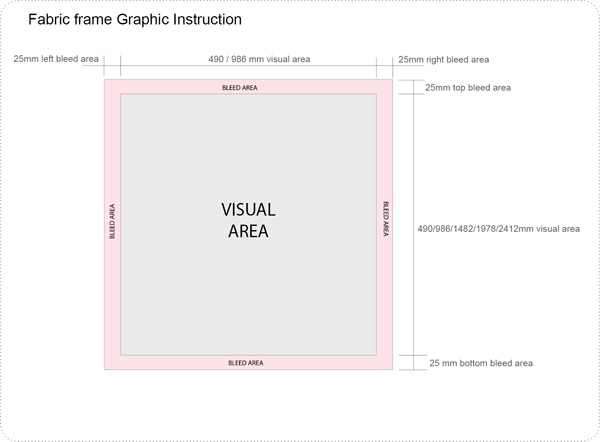

Bleeding (top/bottom): 25 mm for each side
Graphic size (LxH): 540 x 540 mm / 1036 x 1036 mm / 1036 x 1532 mm / 1036 x 2028 mm
1036 x 2462 mm
Outline size (LxHxD): 496 x 496 x 55 mm / 992 x 992 x 55 mm / 992 x 1488 x 55 mm
992 x 1984 x 55 mm / 992 x 2418 x 55
Installation: 1 person /  2 minutes
